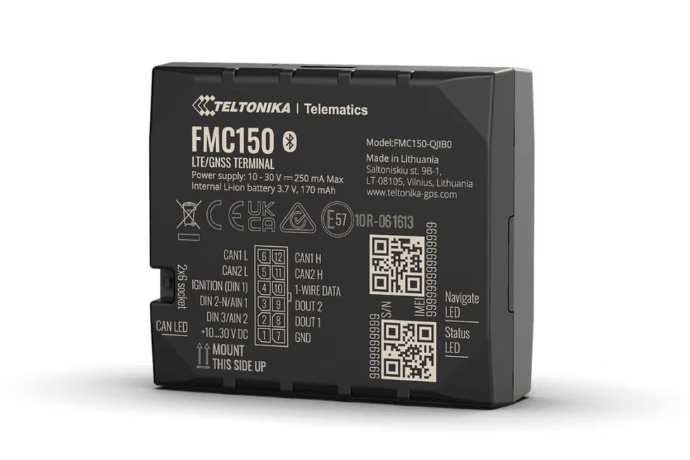

Teltonika FMC150 GPS Tracker

The FMC150 is built for fleet operators who need more than just a dot on a map. With a fully integrated CAN data processor, it reads live vehicle parameters directly from the onboard systems like fuel level, RPM, engine temperature, odometer, door and window status across more than 2,100 supported vehicles including electric models. The AUTOSCAN feature automatically identifies the vehicle and applies the right configuration, eliminating setup errors and saving installation time. Whether you're running a car-sharing platform, a rental fleet, or a logistics operation, the FMC150 gives you the vehicle intelligence to make smarter, faster decisions.

Key Features

Integrated CAN data processor — no external adapter needed for supported vehicles
Over 100 CAN parameters supported across 2,100+ vehicles
CAN data reading from EVs — over 100 supported electric vehicles
AUTOSCAN — automatically detects vehicle model and applies correct configuration
Remote engine blocking and extensive fleet control measures
1-Wire interface for temperature sensors and RFID driver identification
Eco driving and fuel monitoring
Bluetooth 4.0 + LE for driver ID and sensor connectivity

Technical Specifications

Feature	Specification
Connectivity	4G LTE Cat 1
Dimensions (L x W x H)	65 x 56.6 x 20.6 mm
Power Supply	10–30V DC
Connector Type	12-pin
Ingress Protection	IP41
Internal Battery	170 mAh Li-ion 3.7V
Bluetooth	4.0 + LE
GNSS Antenna	Internal High Gain
CAN Parameters Supported	100+
CAN Vehicles Supported	2,100+
Digital Inputs	3
Digital Outputs	3
Analog Inputs	2
Impulse Inputs	1
Negative Inputs	1
1-Wire Interface	Yes
