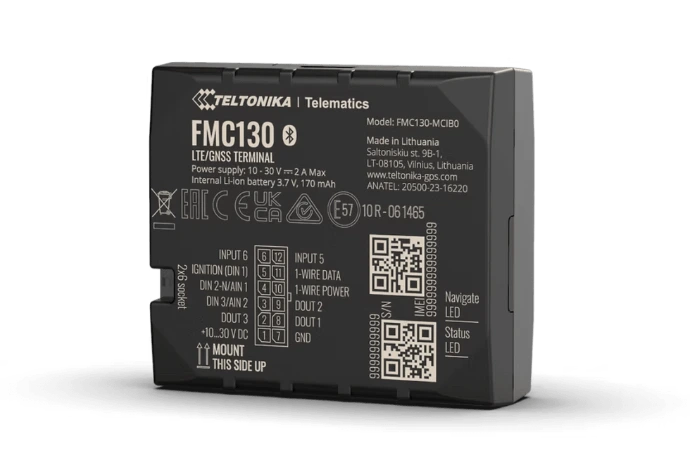

Teltonika FMC130 Vehicle GPS Tracker

Step up to richer data with the FMC130. This advanced tracker connects to CAN bus adapters to pull live vehicle data — fuel level, RPM, engine temperature, odometer — directly from the vehicle's onboard systems. It also supports remote door and window control, making it a natural fit for car-sharing and rental platforms. An impulse input allows precise fuel flow meter integration for accurate consumption tracking.

Key Features

CAN adapter support for fuel, odometer, RPM, engine temperature from light vehicles, trucks, buses, and special machinery
Accurate fuel usage control via impulse input for fuel flow meter
Remote engine blocking and extensive fleet control measures
1-Wire interface for temperature sensors and RFID
Bluetooth 4.0 + LE for driver ID and sensor connectivity

Technical Specifications

Feature	Specification
Connectivity	4G LTE Cat 1
Dimensions (L x W x H)	65 x 56.6 x 20.6 mm
Power Supply	10–30V DC
Connector Type	12-pin
Ingress Protection	IP41
Internal Battery	170 mAh Li-ion 3.7V
Bluetooth	4.0 + LE
GNSS Antenna	Internal High Gain
CAN Bus	External CAN adapter support
Digital Inputs	3
Digital Outputs	3
Analog Inputs	2
Impulse Inputs	1
1-Wire Interface	Yes
